WAR-WA84 B
Type: Condenser Microphones

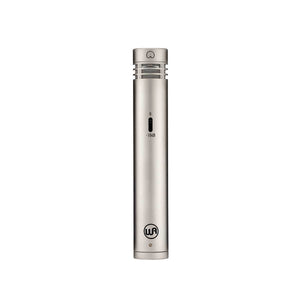

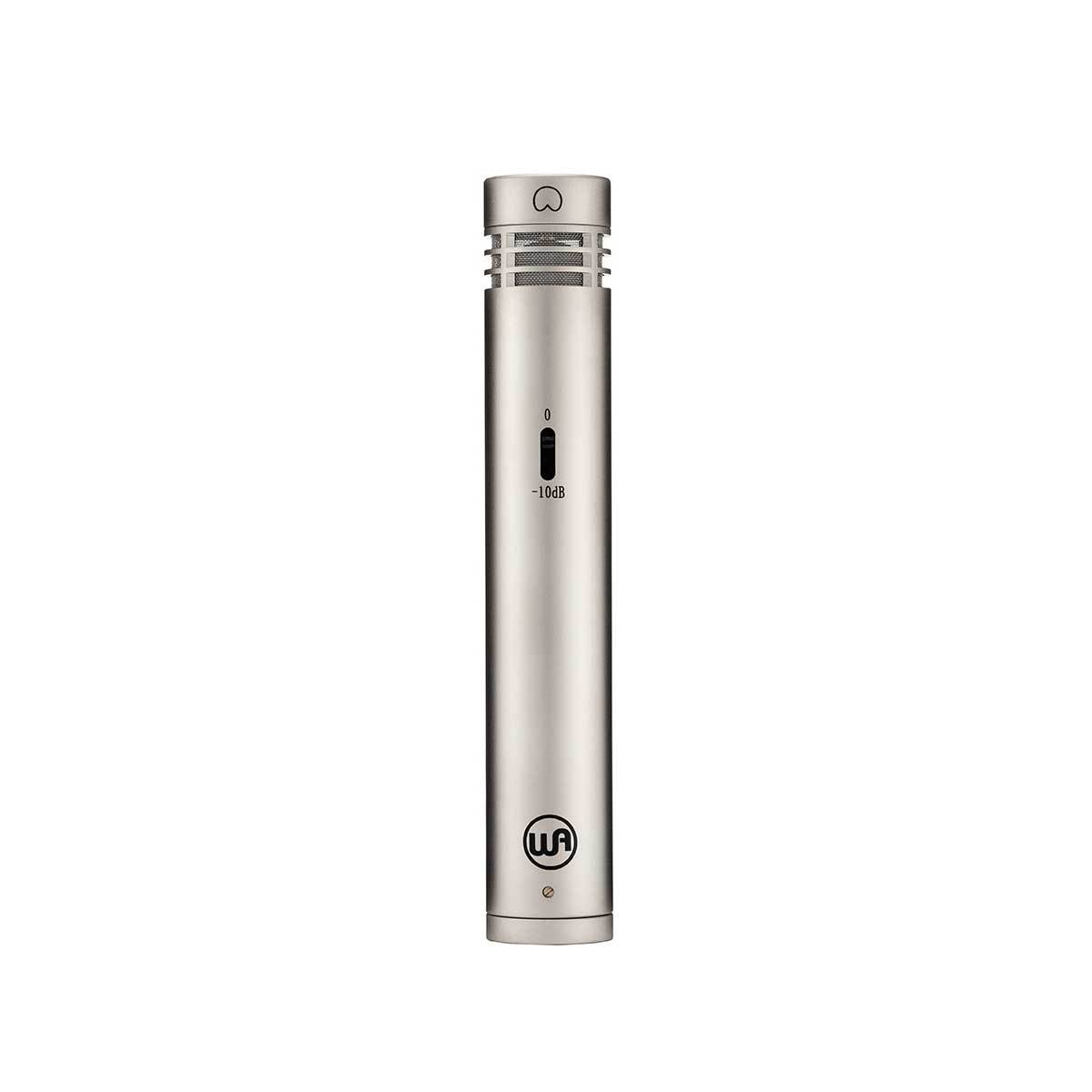

The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.

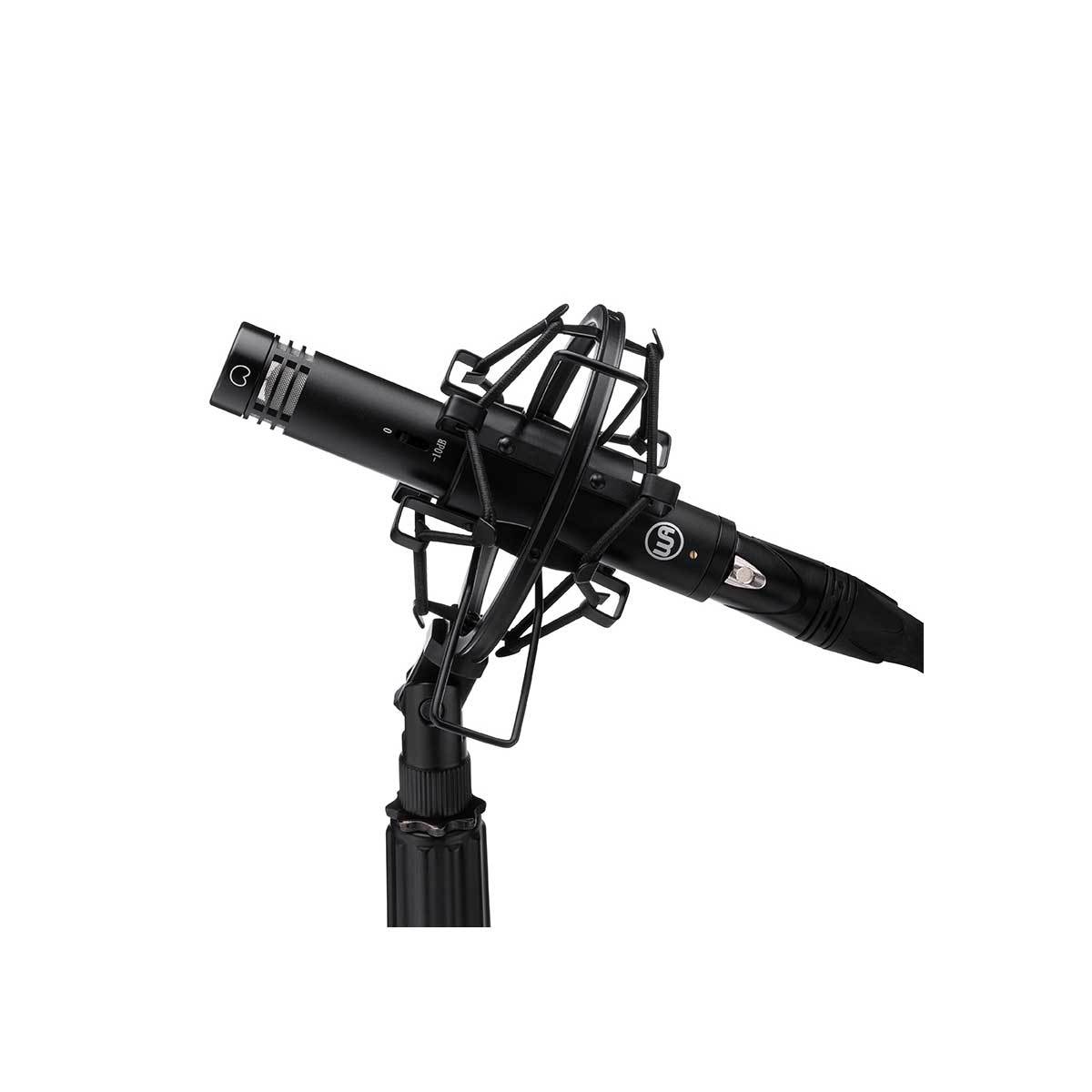

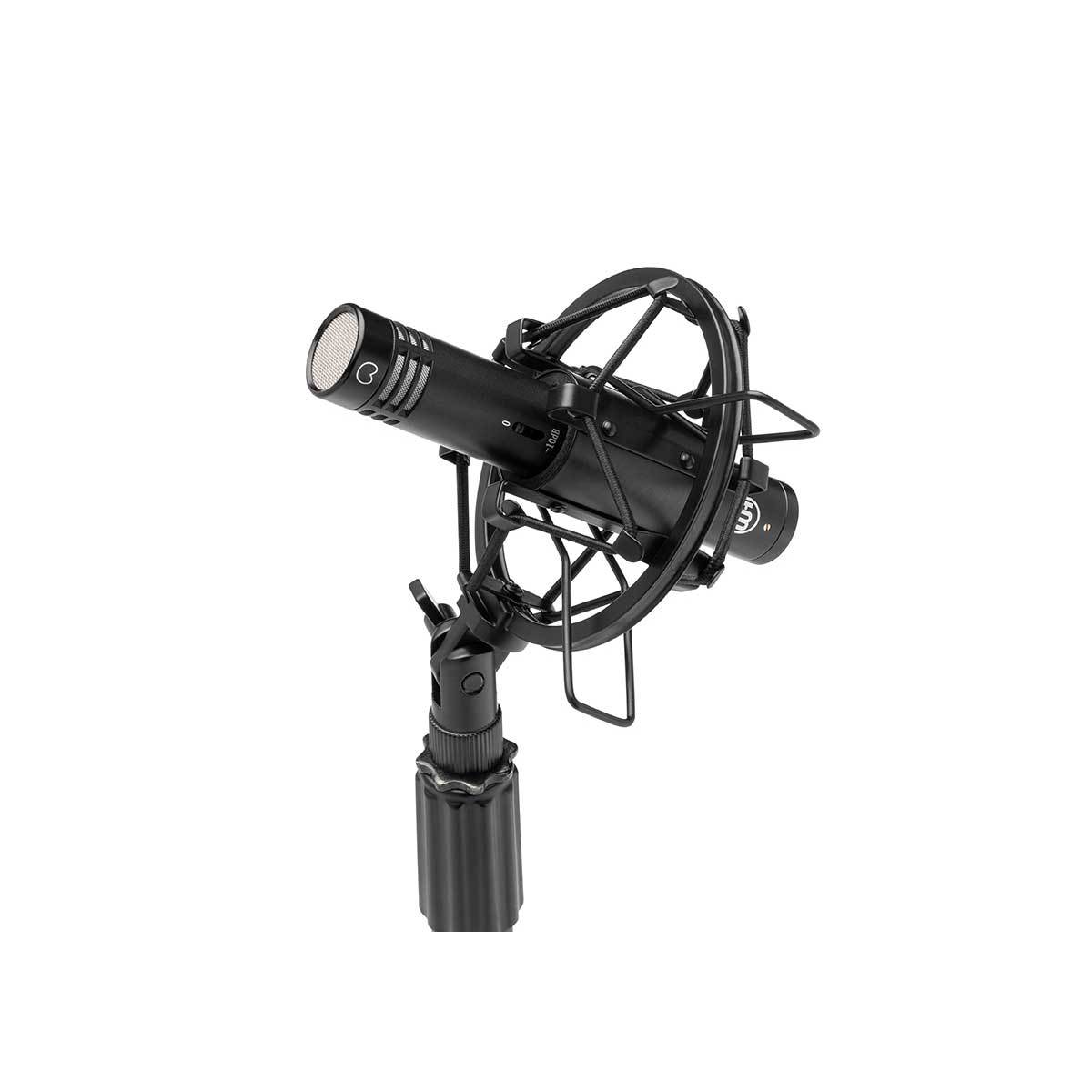

The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for it’s its crystal clear, yet smooth, LARGE sound.
Utilizes a Cinemag USA transformer
Directional pattern: cardioid
Fully discrete vintage-style signal path
Vintage capsule reproduction

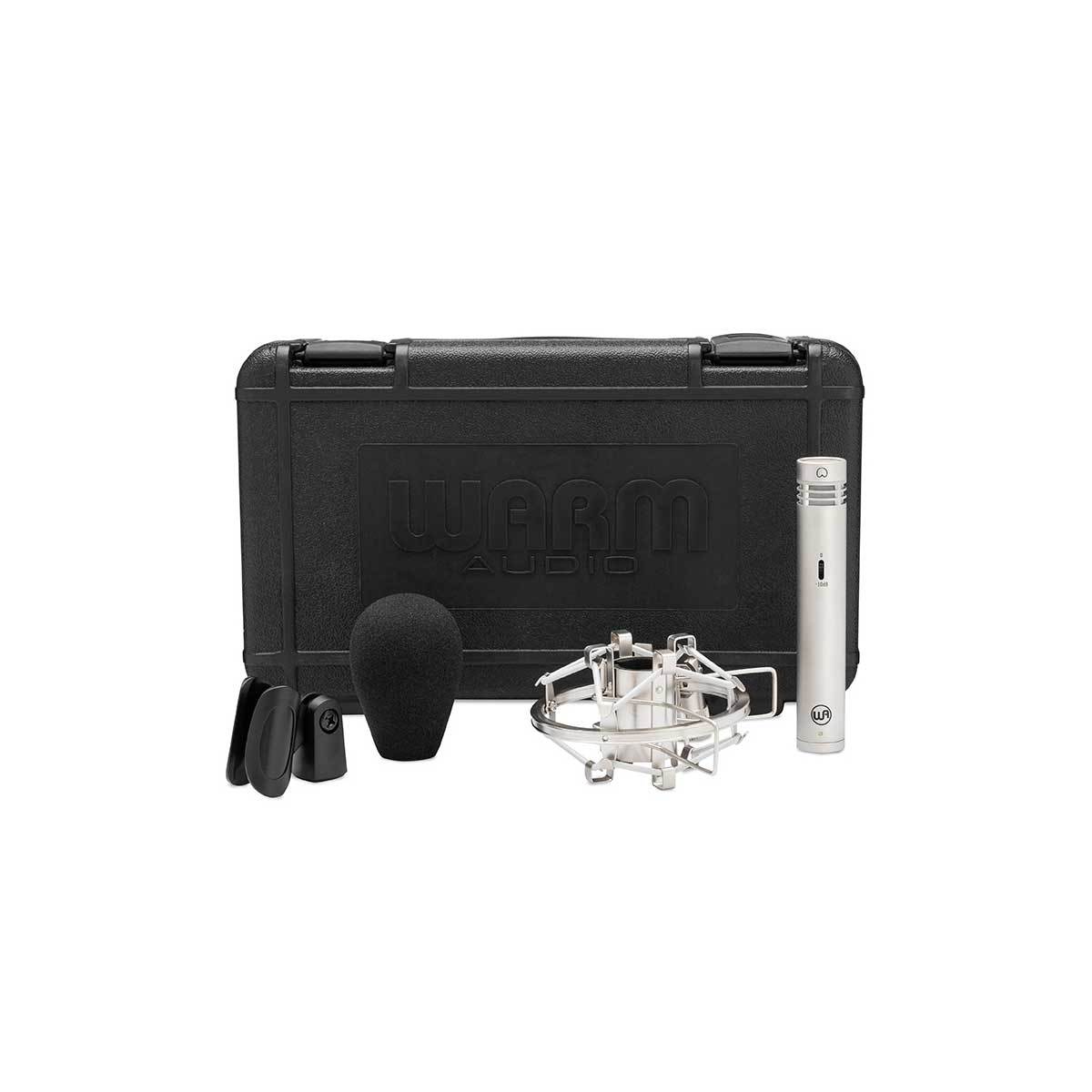

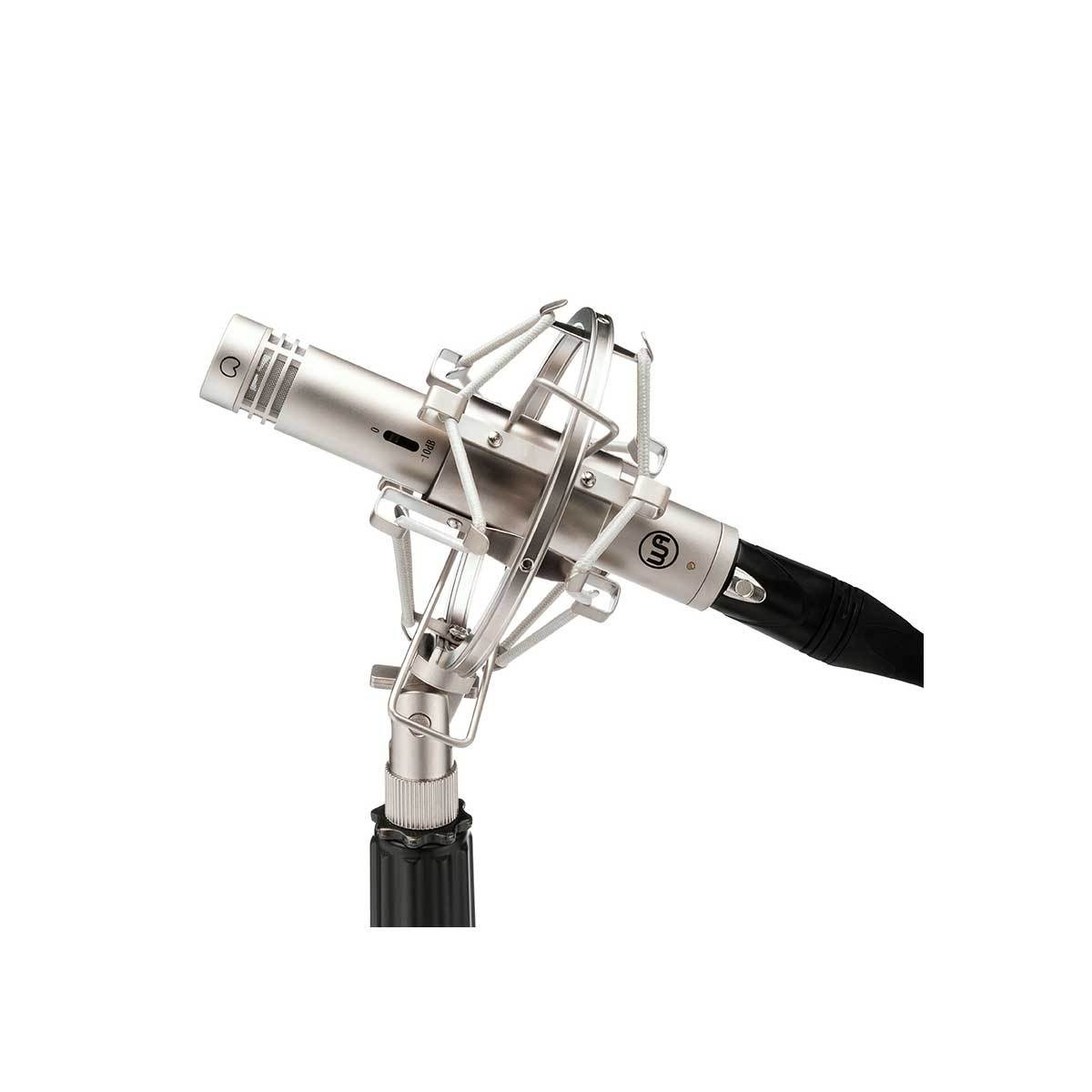

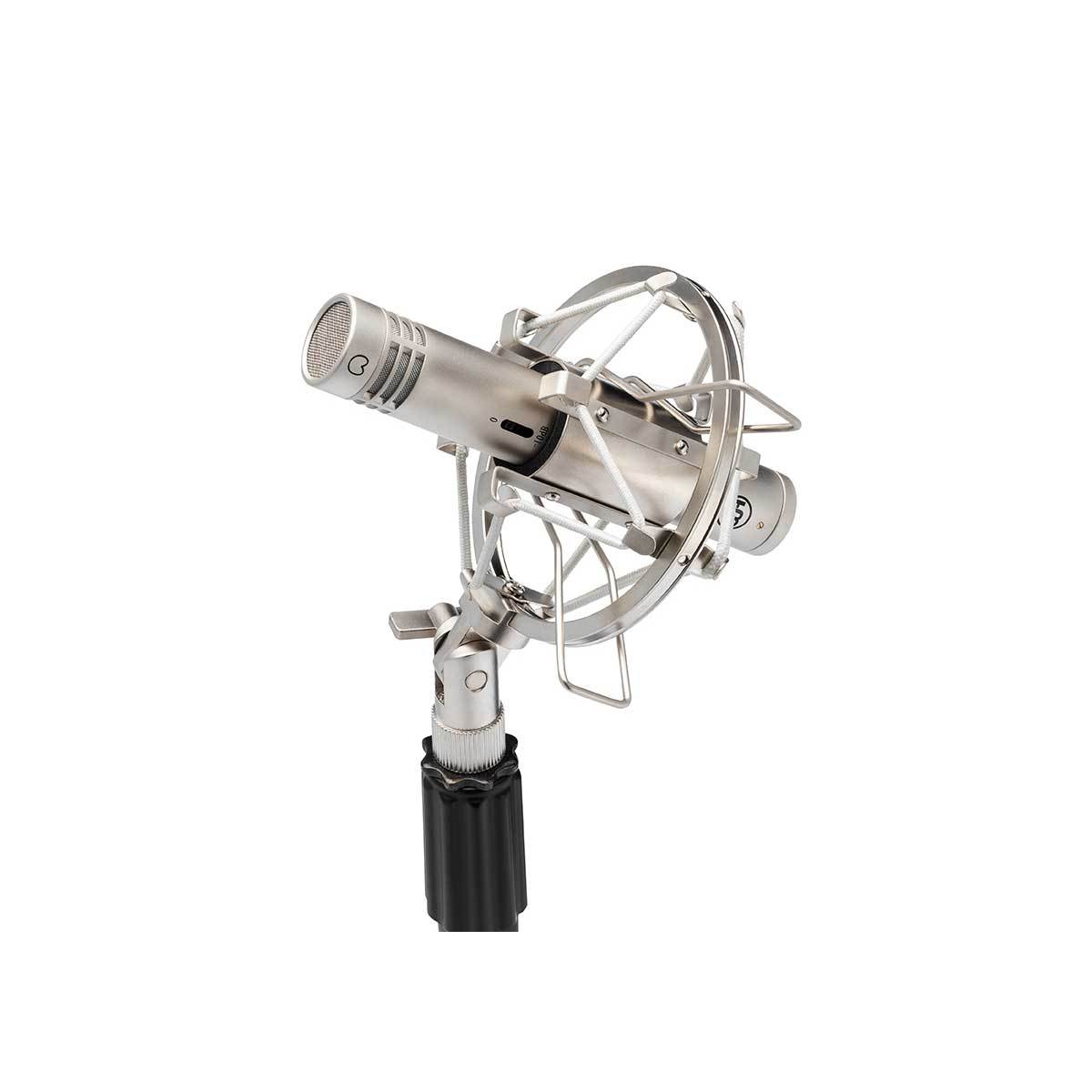

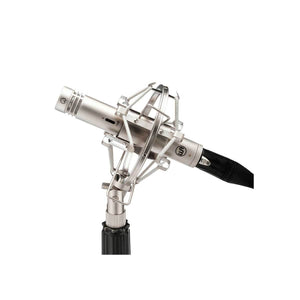

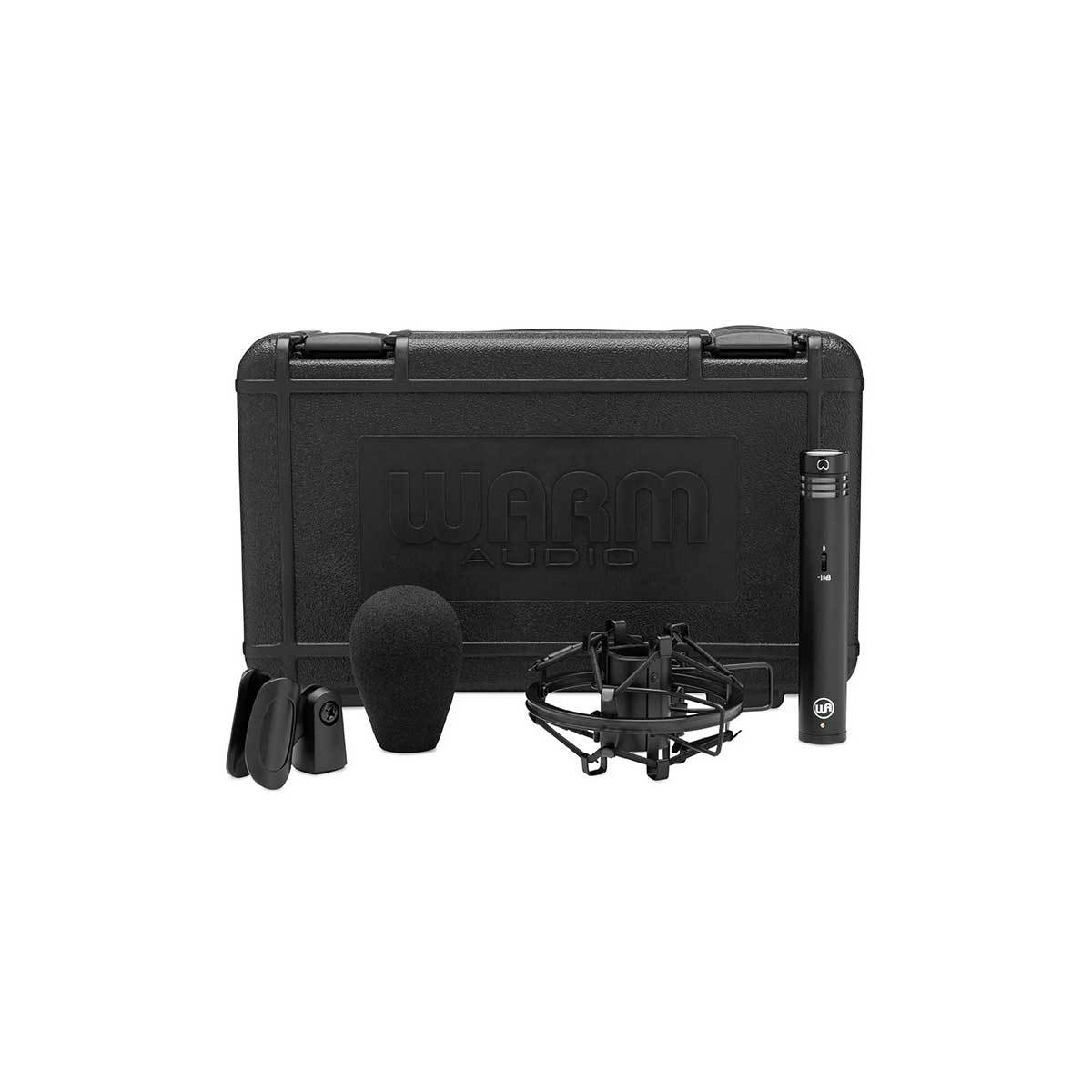

Package includes: microphone, cardioid capsule, shock mount, mic clip, windscreen and carrying case
48v phantom powered
Frequency range: 20HZ - 20kHz
Sensitivity: -39db or 11mv/pa @ 1kHz
Output impedance: 200ω
Rated load impedance: ≥1kω

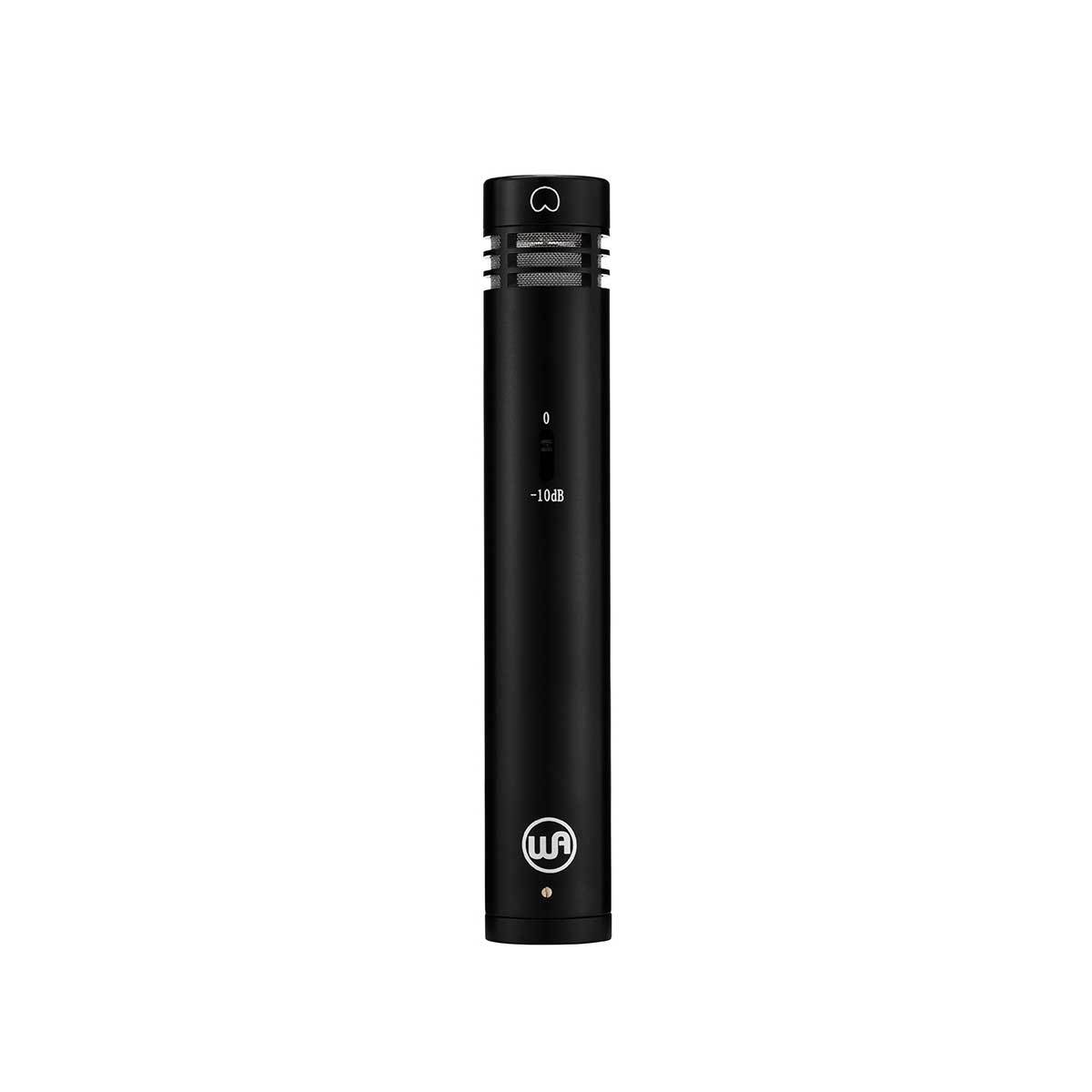

Pad: 0db or -10db
Maximum SPL: 123/133db @ 1khz, 0.5% THD, 0/-10db
S/N ratio: 78dba (iec651)
Equivalent noise: 16dba (iec651)
Dynamic range: 107dba (iec651)
Connector: 3-pin gold-plated XLR
Weight: 122g each
Finish: black & nickel
