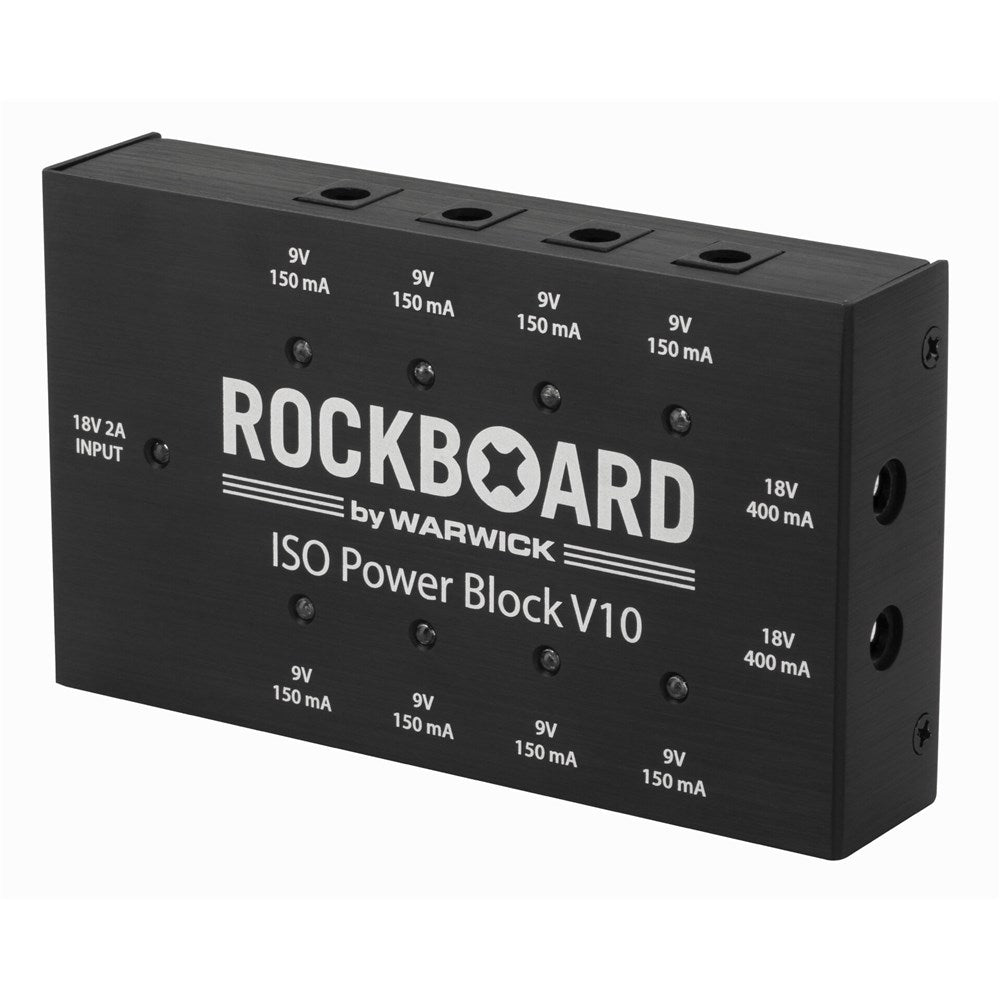

Warwick RockBoard ISO Power Block V10 Version 2

The RockBoard ISO Power Block V10 is a multi-power supply for effects pedals that offers 10 transformer-isolated and highly filtered power slots - 8 x 9 volts (isolated) with a max. the current output of 150 mA each, and 2 x 18 volts (isolated) with a max. the current output of 400 mA each - for separately powering a total of up to 10 effects pedals simultaneously without any noise. The advanced filtering technology used in each of the power slots prevents high-frequency noise. Through individual short circuit protection for each slot, connected effects pedals are effectively protected in case of a short circuit. Individual LEDs indicate short circuits for each of the 9V outputs. In case of a short circuit, only the affected slot is turned off, so undisturbed use of the rest of the effects pedals is guaranteed.

Features

• Multi-power supply for effects pedals
• 10 transformer isolates power slots
• advanced filter technology prevents high-frequency noise
• external transformer prevents low-frequency interference
• max. total current output 2.000 mA
• 8 x 9V power outputs @ 150 mA each, 2,1 x 5,5 mm barrel plug, polarity (-) center
• 2 x 18V power outputs @ 400 mA each ), 2,1 x 5,5 mm barrel plug, polarity (-) center
• individual status LEDs and short circuit protection for all 9V DC slots
• input voltage 18V DC
• incl. 1 x power adapter 18V DC, 2A with exchangeable regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240 V AC, 2,1 x 5,5 mm barrel plug, polarity (-) centre
• incl. 10 x RockBoard Flat Power Cable, 60 cm -for connecting effects pedals
• incl. 1 x RockBoard Power Ace Voltage Doubler Y-Cable, 20 cm / 7 7/8" (blue) - for bridging 2 slots and doubling/combining the volt output
• incl. 1 x RockBoard Power Ace Current Doubler Y-Cable, 20 cm / 7 7/8" (white) - for bridging 2 slots and doubling/combining the current output
• dimensions (L x W x H) 123 x 70 x 26 mm / 4 13/16" x 2 3/14" x 1"
• weight 180 g / 0,4 lb
